V‐Bank HEPA Filter
V‐bank HEPA filter ideally suit as main filter stage where high air flow rates and maximum efficiency are required, for the removal of particles, toxic dusts or aerosols from the exhaust or supply air flows.
The media is water‐repellent and therefore usable within air flows of high humidity. The air entry profiles are aerodynamically shaped to reduce the pressure drop at high flow rates.
The filter frame offers maximum rigidity and is corrosion free.Existing bag filter stages can be easily upgraded by exchange due to the fact that V‐bank filter fit into standard bag filter mounting frames.
The media is water‐repellent and therefore usable within air flows of high humidity. The air entry profiles are aerodynamically shaped to reduce the pressure drop at high flow rates.
The filter frame offers maximum rigidity and is corrosion free.Existing bag filter stages can be easily upgraded by exchange due to the fact that V‐bank filter fit into standard bag filter mounting frames.
Standard Size & Performace Parameters
| Type: | VS‐E11 | VS‐H13 | VS‐H14 |
| Class EN1822 | E11 | H13 | H14 |
| Efficiency EN1822@ MPPS [%] | >95% | >99,95% | >99.995% |

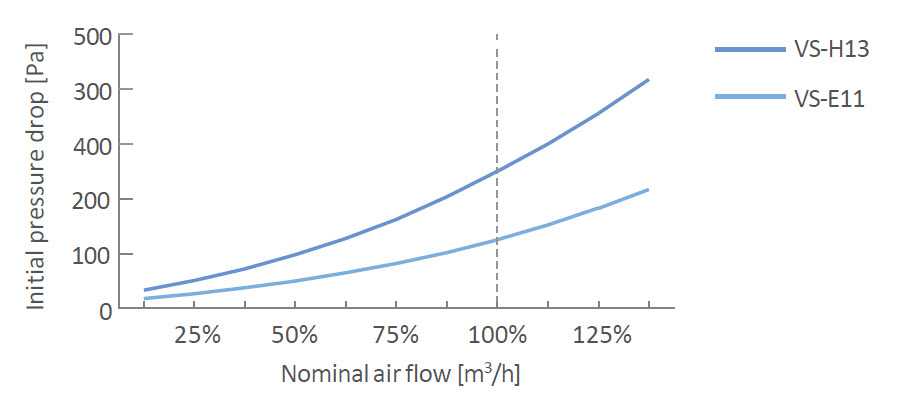

| Initial‐ΔP[Pa] at nominal airflow | 125 | 250 | 250 |
| Rec. final pressure drop [Pa] | 600 | 600 | 600 |
| Max. temp. [°C] | 65° | 65° | 65° |
| Model (E=efficiency N=V quantity) |
Width | Height | Depth | Nominal airoflw [m3/h] |
V quantity |
| VS592592292‐E (E11‐H14) N5 | 592 | 592 | 292 | 3000 | 5 |
| VS592592292‐E (E11‐H14) N4 | 490 | 592 | 292 | 2400 | 4 |
| VS287592292‐E (E11‐H14) N4 | 287 | 592 | 292 | 1200 | 4 |
| Frame | corrosion resistant plastic |
| Operational conditions | ▪ max. rel. h.100 [%] ▪ max. temp. 65 [°C], short term peak up to max. 80 [°C] |
| Spacers | thermoplastic (minipleat) |
| Filtermedia | high quality glass fibre paper (water resistant), pressure drop may temporarily increase at high humidity levels |
| Combustible | Yes |
| Options | ▪ burst protector / protection screen ▪ foamed gasket on theclean air side of the flange ▪ V quantity is available from 2‐5v |
